2.4 GHz 4.5 dBi Vertical Collinear Antenna

Hover over image to zoom

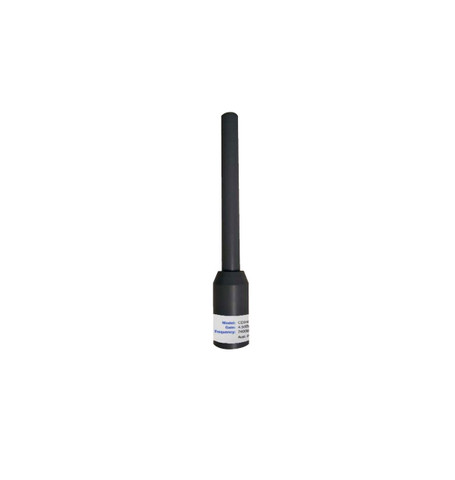

  • 2.4 GHz 4.5 dBi Vertical Collinear Antenna
  • Typical Elevation Plane and VSWR

2.4 GHz 4.5 dBi N-type Vertical Collinear Antenna

4
$88.00 (inc GST) $80.00 (exc GST)
4

 Product Description

This 2.4 GHz ISM band antenna offers an omni pattern enabling optimum network configuation. The patented PCB design delivers superior pattern stability across the entire band avoiding inhererent pattern tilting common in more tradional collinear designs. Includes an integrated 'N' type male connector.

Technical Specifications

Frequency 2400 - 2500 MHz
Nominal Gain 4.5 dBi
Tuned Bandwidth Entire Band
VSWR (Return Loss) <1.5:1 (14dB)
Polarisation Vertical
Vertical Beamwidth 33 degrees
Horizontal Beamwidth 360 degrees
Nominal Impedance 50 Ω
Power Rating 5 W
Connector/Termination Integrated N male
Mounting Area Integrated N male
Overall length 205 mm
Weight 0.1 kg



View the datasheet

Vendor Part Code: ANT-VC-24-45-N
